Hotchkiss H 35 and H 39
Description
The Hotchkiss H 35 was a light tank that entered
service with the French army in 1935. In 1938 production of the
H 35 was replaced by the H 35 model 1939, the
H 39

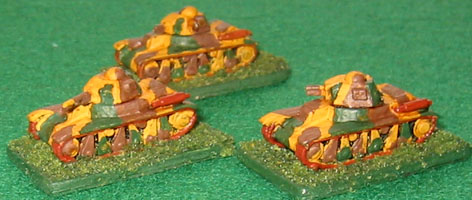

Three H 35 tanks in 12mm from
Minifigs
Note that the lead tank has been converted and given a longer SA38 gun
and is probably the platoon leader.
Development
The development plan of 1926 called for a cheap mass-produced light
tank to replace the Renault FT-17.
Renault developed the Char D1 to fulfil these requirements, but it was
neither cheap nor particularly light (being classed as a medium tank).
Following the combined exercises of 1932 and 1933, a plan was created
inviting French industry to tender designs. Seventeen
companies responded, five
submitted prototypes of which three were taken into
production: Hotchkiss H 35, Renault
R 35 and the FCM 36.
There was great rivalry between Hotchkiss and Renault, and in
the end the Hotchkiss tank was adopted by the cavalry and the Renault
tank by the infantry.
The H 35 was a light tank designed for use by the
cavalry just as the Renault R 35
was designed for the infantry. The
Hotchkiss and the Renault were rather alike in appearance, but can
easily be told apart; 6 wheels on the Hotchiss and 5 on the Renault. As
would be expected of a cavalry tank the H 35 had a faster
speed than the R 35 but this was obtained to some extent at the expense
of armour protection. The H 39 had improved armour and a
bigger engine giving a faster top speed. The difference between the two
models can be seen by the raised engine compartment at the rear of the
tank in order to accomodate the larger engine.
H 35 with APX-R1 and long
barrelled SA 38 gun by Pithead Miniatures.
Most H 35 and H 39 tanks had the APX-R turret armed
with the 37mm SA18 gun but some
received the new APX-R1 turret armed with the longer barrelled 37mm
SA38 which had a better anti-tank capability. A total of 350 SA38 guns
were installed in the R 39, H 35 and H 39; this
being a very small percentage of the available tanks, and generally
only enough to equip the platoon leader's vehicle. It is often stated,
but
wrongly, that the SA18 equipped the H 35 and the SA38 the
H 39.

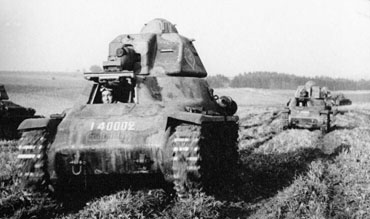

H 35 tank belonging to the 18th
Dragoons.
Operation
The commander was very overworked in the one-man turret.
Apart from directing the driver and keeping in touch with other tanks
in his unit (by flags) the commander was also the main gunner
and loader. So in action he would have his head in the
cupola directing the driver, he would then have to spot the
target and jump down into the turret when he would load with the
correct ammunition, rotate the turret by hand onto the target, peer
through the gun-sight and set the range, finally fire the gun.
The turret had a cupola where most other tanks would have a
turret hatch. The commander could not raise his head out of the turret
and thus had a more restricted view than was possible for German tank
commanders who often when into battle so. When captured and used by the
German Army the cupola was modified by cutting away the top
and installing a two-door hatch. This gave the commander much improved
visibility.
The driver sat in the hull on the right. He had a hatch in
front of him which was usually left open when the tank moved behind the
lines but which would have been suicidal to have open in combat when he
relied on an observation slit and a episcope which necessitated
detailed instructions from the commander.

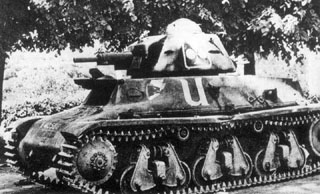

H 39 equipped with a 37mm SA38 gun.
Deployment
The Hotchkiss light tanks equipped the following:
- The four Light Mechanised Divisions (DLM)
- 86 tanks per division together with 96 SOMUA S 35.
- The Light Cavalry Divisions (DLC) - 13 tanks per division
- The first three Reserve Armoured Divisions (DCR)
- 80 tanks per division together with 68 Char B1 bis.
- A few independant smaller units; BCC,
CACC,
RCA,
GRDI
10th May 1940
When the Germans's attacked the French army had the
following Hotchkiss H 35 and H 39 tanks on active service.
802 Hotchkiss tanks (328 Hotchkiss H35 and 474 Hotchkiss H39) were in
France and 42 abroad.
- 13th BCC: 40+5 Hotchkiss H-35
- 14th BCC: 40+5 Hotchkiss H-39 (part of the 2nd
DCR)
- 25th BCC: 40+5 Hotchkiss H-39 (part of the 1st
DCR)
- 26th BCC: 40+5 Hotchkiss H-39 (part of the 1st DCR)
- 27th BCC: 40+5 Hotchkiss H-39 (part of the 2nd DCR)
- 38th BCC: 40+5 Hotchkiss H-35
- 42nd BCC: 30 Hotchkiss H-39 (part of the 3rd DCR)
- 45th BCC: 40+5 Hotchkiss H-39 (part of the 3rd DCR)
- 342nd CACC: 15 Hotchkiss H-39 (in Norway)
- 1/42nd CACC: 15 Hotchkiss H-35
- 2nd GRDI: 13 Hotchkiss H-39 (part of 9th DIM - also 13
Panhard 178)
- 5th GRDI: 13 Hotchkiss H-35 (part of 25th DIM - also 13
Panhard 178)
- 1st RAM: 13 Hotchkiss H-35 (part of 1st DLC)
- 2nd RAM: 13 Hotchkiss H-35 (part of 2nd DLC)
- 3rd RAM: 13 Hotchkiss H-35 (part of 3rd DLC)
- 4th RAM: 13 Hotchkiss H-35 (part of 4th DLC)
- 5th RAM: 13 Hotchkiss H-35 (part of 5th DLC)
- 1st RC: 43+4 Hotchkiss H-39 (part of 3rd DLM - also 44+4
S-35)
- 2nd RC: 43+4 Hotchkiss H-39 (part of 3rd DLM -
also 44+4 S-35)
- 4th RC: 43+4 Hotchkiss H-35 (part of 1st DLM - also 44+4
S-35)
- 1st RCA : 13 Hotchkiss H-35 and 14 Hotchkiss H-39 (in
Tunisia)
- 18th RD: 43+4 Hotchkiss H-35 (part of 1st DLM -
also 44+4 S-35)
- 13rd RD: 43+4 Hotchkiss
H-35 (part of 2nd DLM - also 44+4 S-35)
- 29th RD: 43+4 Hotchkiss H-35 (part of 2nd DLM -
also 44+4 S-35)
- 11th RDP: 63+6 Hotchkiss
H-39 (part
of 3rd DLM)
During the fighting the following tanks were added.
- 351st CACC: 11 Hotchkiss H-39
- 3rd RC: 40 Hotchkiss H-39 (part of the 4th DCR - also 39
S-35)
- 7th RC: 24 Hotchkiss H39 (also 25 Somua S-35)
Technical Data
Manufacturer |
Hotchkiss (1935-1938) |
Quantity |
1st September 1939: 400 |
Weight |
9.4 tons, 9.6 tonnes, 9,600kg |
Length |
4.22 m (13' 10") |
Width |
1.95 m (6' 5") |
Height |
2.15 m (7' 1") |
Main |
37mm SA18 or 37mm SA38 |
Secondary |
7.5mm Chatellerault MAC mle 1931 coaxial machine-gun |
Elevation |
-16 to +20° |
Traverse |
360° (hand) |
Ammunition |
Main: 100 (60 HE and 40 AP), Machine-gun 2250 (1350
ball and 900 AP) |
Turret Front |
40mm @ 5° and 28° |
Turret Side |
40mm @ 28° |
Turret Rear |
40mm @ 30° |
Turret Top |
25mm @ 90° |
Gun Mantlet |
40mm round. The Germans measured 45mm |
Superstructure Front |
35mm round |
Superstructure Side |
35mm @ 20° |
Superstructure Rear |
35mm @ 25° |
Superstructure Top |
22mm @ 90° |
Hull Front |
35mm @ 30° |
Hull Side |
35mm @ 0° |
Hull Rear |
22mm @ 30° |
Hull Bottom |
12mm @ 90° |
Engine |
Hotchkiss 3.5 litre, 6 cylinder, petrol, 75 hp at
2,700 rpm |
Speed (Road) |
36 km/h (22 mph) |
Speed (Cross-Country) |
12 km/h (8 mph) |
Range (Road) |
130 km (81 miles) |
Range (Cross-Country) |
95 km (59 miles) |
Crew |
2: Commander, Driver |
Radio |
None |
Other nations |
Germany: Panzerkampfwagen 35H 734(f) |
An H 35 tank in 12mm from Minifigs.
In this scale the difference is so small that it could easily be used
as an H 39.
Manufacturer |
Hotchkiss (1938-1940) |
Quantity |
1st September 1939: 640
1st May 1940: 958 |
Weight |
11,9 tons, 12.1 tonnes, 12,100 kg |
Length |
4,22 m (13' 10") |
Width |
1,95 m (6' 5") |
Height |
2,15 m (7' 1") |
Main |
37mm SA18 or 37mm SA38 |
Secondary |
7.5mm Chatellerault MAC mle 1931 coaxial machine-gun |
Elevation |
-16 to +20° |
Traverse |
360° (hand) |
Ammunition |
Main: 100 (60 HE and 40 AP), Machine-gun 2250 (1350
ball and 900 AP) |
Turret Front |
40mm @ 5° and 28° |
Turret Side |
40mm @ 28° |
Turret Rear |
40mm @ 30° |
Turret Top |
25mm @ 90° |
Gun Mantlet |
45mm round |
Superstructure Front |
40mm round |
Superstructure Side |
40mm @ 20° |
Superstructure Rear |
40mm @ 25° |
Superstructure Top |
22mm @ 90° |
Hull Front |
40mm @ 30° |
Hull Side |
40mm @ 0° |
Hull Rear |
22mm @ 30° |
Hull Bottom |
12mm @ 90° |
Engine |
Hotchkiss 6 litre, 6 cylinder, petrol, 120 PS at 2,800
rpm |
Speed (Road) |
36 km/h (22 mph) |
Speed (Cross-Country) |
17 km/h (11 mph) |
Range (Road) |
150 km (94 miles) |
Range (Cross-Country) |
110 km (69 miles) |
Crew |
2: Commander, Driver |
Radio |
None |
Other nations |
Germany: Panzerkampfwagen 38H 735(f) |
|
